AIR FILTER REGULATOR
› FR10 / › FR20 / › FR30

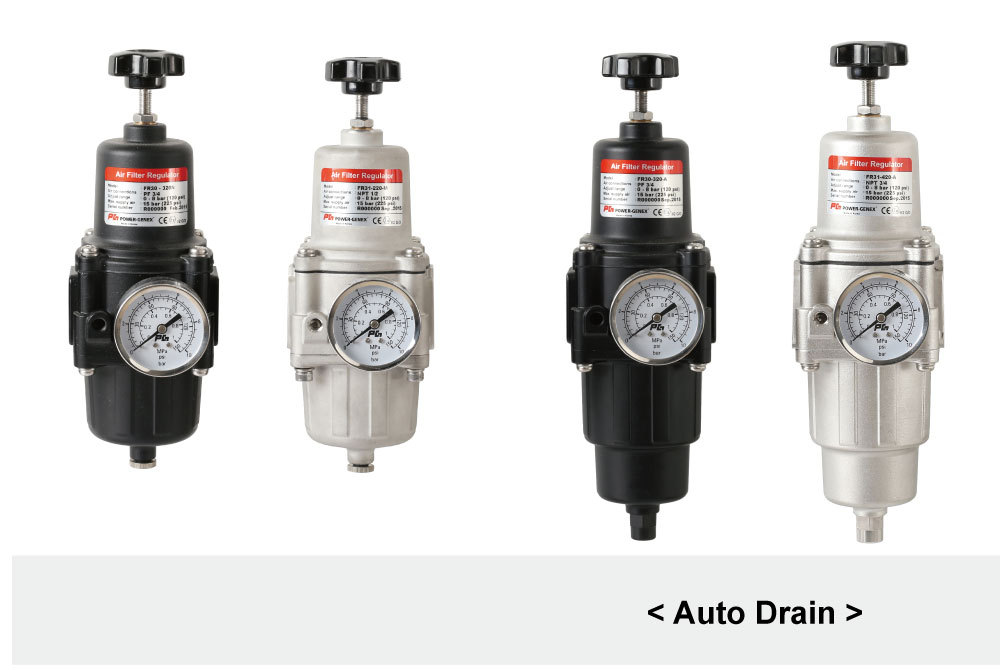

FR30

Introduction

Valve air unit essential to provide clean and dry supply air to valve positioners, solenoid valves and pneumatic actuators

Features

- Rugged aluminum die-cast housing
- Excellent tability and rpeatability
-
Stable setting pressure
- High capacity with 5 micron filter
- Self-relief function to balance output and setting pressures
- High flow capacity

Specifications

Model

FR30

FR31

Port Size

PT(Rc) 1/2 , NPT 1/2

PT(Rc) 3/4 , NPT 3/4

NPT 1/2

NPT 3/4

Fluid

AIR

Output Pressure Range

0 - 4 bar (60 psi) / 0 - 8 bar (120 psi)

Max. Supply Pressure

Max. 15 bar (225 psi)

Operating and Fluid Temperature

-20 - +70℃

Supply Air

Filtered compressed, dry and non oiled air

Gauge Port Size

PT (Rc) 1/8

Filteration

5 micon

Housing Material

Aluminum die-cast

Stainless steel 316

Pressure Gauge Material

Stainless steel

Weight

0.65 kg

1.4 kg

How to order

FR

Body

Materail

-

Port Size

Output

Pressure

Range

Operating

Temp.

-

Option

Description

Code

Body Material

30 : Aluminum die-cast

31 : Stainless steel 316

Port Size

1 : PT(Rc) 1/2

2 : NPT 1/2
3 : PT(Rc) 3/4

4 : NPT 3/4

Output

Pressure Range

1 : 0 - 4 Bar (60 psi)

2 : 0 - 8 Bar (120 psi)

Operating

Temperature

0 : -20  -  +70℃

1 : -20  -  +120℃

2 : -40  -  +80℃

Options

M : Manual drain

A : Auto drain
