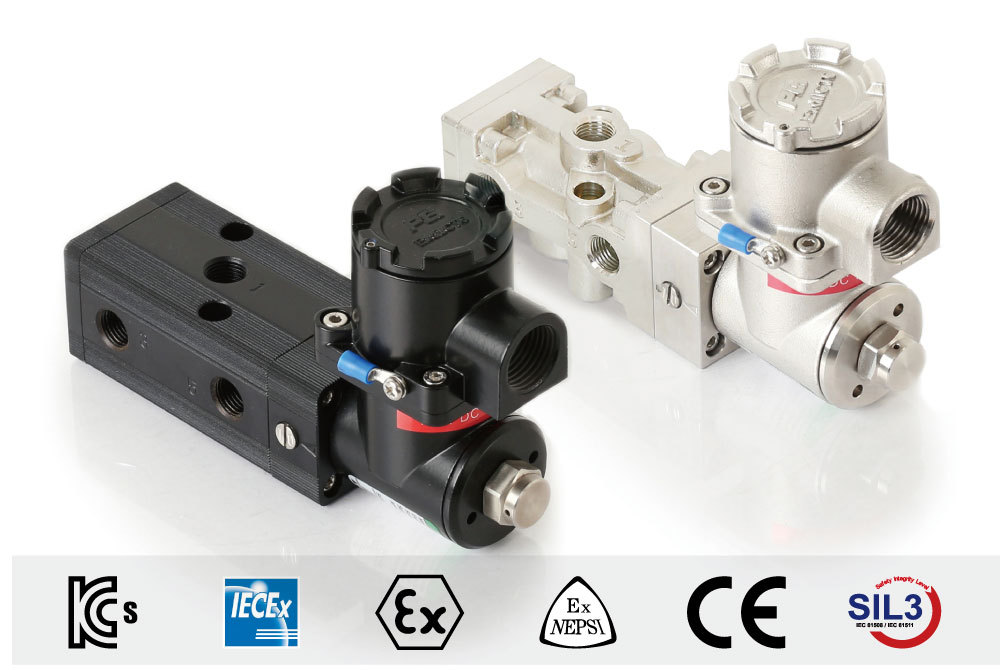

ESV-S (Single Coil)

Introduction

Explosion proof solenoid valve for a confident control in rough working environments

Features

- Rugged aluminum die-cast housing
- Convertible from 5/2 way to 3/2 way
- Rotatable valve head for optimal mounting
- Direct NAMUR mounting or screw mounting

- Usable up to SIL 3 acc. IEC 61508
- Flameproof, Ex d IIC T6/T5/T4 (KC IECEx ATEX)
- Dust ignition protection, Ex tb IIIC T85℃/T100℃/T135℃ Db (KC IECEx ATEX)

Specifications

Operating Air Pressure

1.5 – 10 kgf/

Air Supply (Max.) 15 kgf/
Operating Voltage : CurrentAC 110V : 6.4W
AC 220V : 6.8W
DC 24V : 3.4W
Voltage Tolerance±10%
Frequency60Hz
Explosion Proof ClassEx d IIC T6/T5/T4 (KC IECEx ATEX)
Ex tb IIIC T85℃/T100℃/T135℃ Db (KC IECEx ATEX)
Operating Ambient Temperature-20 ~ + 60
Flow Capacity (Cv)

0.9

Mounting ConfigurationNAMUR or screw interface
Pneumatic ConnectionsPT(Rc) 1/4 or NPT 1/4
Electrical Connection

PF(G) 1/2 , NPT 1/2 , M20

Coil Insulation GradeClass F or Class H
Duty Cycle100%
Weight Aluminum / Aluminum : 0.9 kg
Aluminum / SS316 : 1.9 kg
SS316 / SS316 : 2.3 kg
